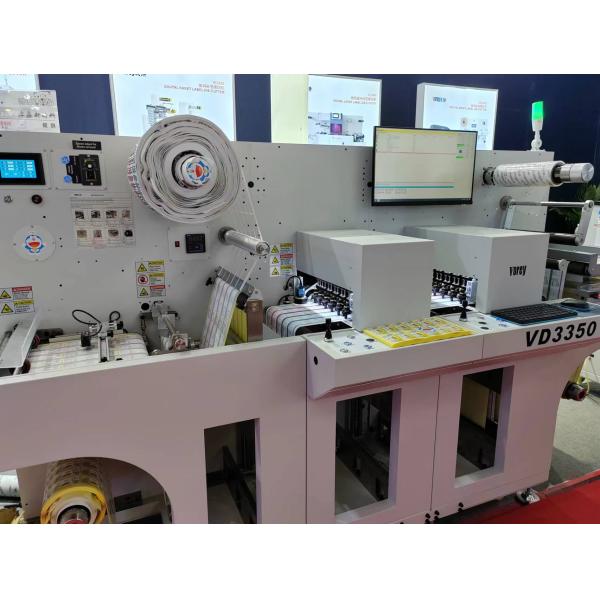

Digital Roll To Sheet Label Laser Die Cutter With Laminating
The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conceyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.
It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications.
The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.
With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.
Product Details:
1. High precisions feeding system
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2. Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3. Digital die-cutting system
VD3350 utilizes high precision screw transmission system.
Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.
4. CCD identify system
The CCD camera position and identify system,can recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5. The waste removing system
Dual mechanical force expansion control, multi-angle waste discharge frame, can uniformly remove waste, avoid uneven strength caused by intermittent waste discharge, make the product clean and tidy.

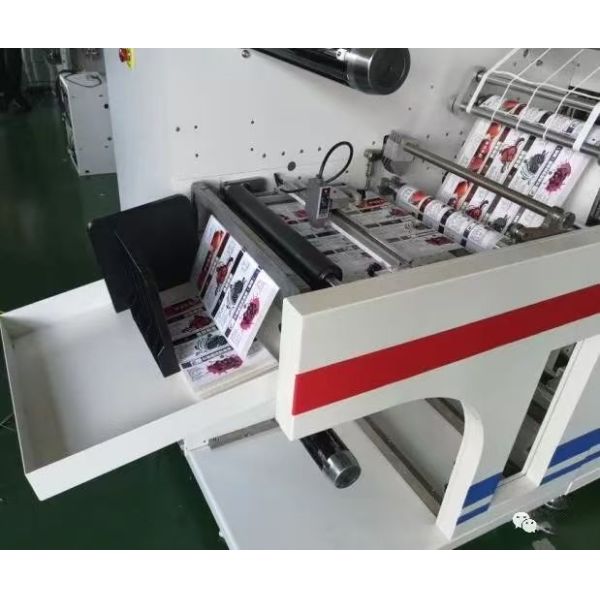

6.Built-in sheet cutting system
Optional built-in PC350 slitter to realize wired cutting and
synchronous die-cutting and sheet cutting.
